Piedmont Triad Regional Water Authority

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Piedmont Triad Regional Water Authority   PWSID: 30-76-010
Mailing Address:P.O. Box 1326
Randleman, NC 27317		Ownership:Authority

Contact Person:Greg FloryTitle:Executive Director
Phone:336-498-5510Cell/Mobile:336-517-9139

Secondary Contact:Rebecca Brown Phone:336-498-5510
Mailing Address:P.O. Box 1326
Randleman, NC 27317		Cell/Mobile:336-517-9139
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 18-48 100.00 %
What are the estimated total miles of distribution system lines?   12 Miles
How many feet of distribution lines were replaced during 2022?   0 Feet
How many feet of new water mains were added during 2022?   0 Feet
How many meters were replaced in 2022?   0
How old are the oldest meters in this system?   13 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   8.3000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   No
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

PTRWA is strictly a wholesale provider to other systems. In an emergency where PTRWA was not able to provide adequate water supply to the water systems we serve those systems all have direct connections with other systems which serve as their backup supplies.

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Haw River (02-1)53 %
Deep River (02-2)47 %
County(s)% of Service Population
Guilford75 %
Randolph25 %
What was the year-round population served in 2022?   0
Has this system acquired another system since last report?   No

We do not directly serve any customers, all water is sold to other water systems who distribute it to end users, therefore; we do not have a population that is directly served by our system.

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 0 0.0000 0 0.0000
Commercial 0 0.0000 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.3420 MGD

All water produced is sold to other public water systems who then distribute it to end users, we have no data on the type of usage as we have no direct customers other than the public water systems we supply.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Archdale 02-76-030 0.9020 365 1.5590 2057 Yes Yes 18 Regular
Greensboro 02-41-010 6.8580 365 7.9300 2057 Yes Yes 48 Regular
High Point 02-41-020 2.7300 365 2.7800 2057 Yes Yes 24 Regular
Randleman 02-76-015 0.6700 365 1.0000 2057 Yes Yes 24 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 12.1680 13.0850 May 11.9990 12.6080 Sep 11.8210 12.6820
Feb 12.2420 12.7190 Jun 12.0440 12.9170 Oct 11.7640 13.0450
Mar 11.9770 12.4530 Jul 11.7780 12.8800 Nov 11.3920 11.7420
Apr 11.3770 13.1920 Aug 11.8160 12.4020 Dec 11.5530 12.4100

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Deep River Randleman Regional Reservoir 11.8230 365 13.1920 54.0000 SY50 22,000.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Deep River Randleman Regional Reservoir 171 Yes Deep River (02-2) Randolph Regular
What is this system's off-stream raw water supply storage capacity?   0 Million gallons
Are surface water sources monitored?   Yes, Daily
Are you required to maintain minimum flows downstream of its intake or dam?   Yes
Does this system anticipate transferring surface water between river basins?   Yes

We have a minimum permit required downstream flow requirement of 30 cfs as measured downstream from Randleman Lake Dam, this is maintained on a daily basis. Reductions in the flow requirement are allowed under certain drought conditions.

PTRWA is authorized to transfer 30.5 MGD out of the Deep River Basin to the Haw and Yadkin River Basins. The water that is sold to Greensboro is transferred to the Haw River Basin (28.5 MGD ultimate transfer allocation) and a portion of the water delivered to High Point may be transferred to the Yadkin River Basin (2.0 MGD ultimate transfer allocation).

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
John F. Kime Water Treatment P 14.7000 Yes Yes Randleman Regional Reservoir
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2022?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2022?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

PTRWA is solely a water wholesaler and 100% of our production capacity is allocated to our partners on a daily basis, we do not typically experience peak demands given the structure of our water contract.

4. Wastewater Information

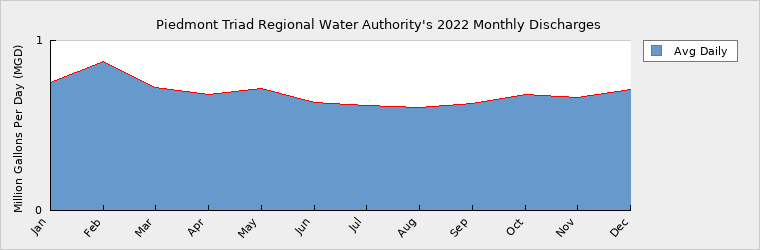

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.7500 May 0.7170 Sep 0.6290
Feb 0.8770 Jun 0.6330 Oct 0.6840
Mar 0.7260 Jul 0.6150 Nov 0.6660
Apr 0.6830 Aug 0.6080 Dec 0.7120

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

Wastewater discharge is solely for process water from the water treatment facility and sludge dewatering operations, there is no domestic component. PTRWA is in currently in the 30 percent design stage for a water treatment plant expansion that will also most likely include the addition of treatment to address emerging contaminants. It is expected that this expansion and emerging contaminant treatment project will necessitate expansion and improvements in the wastewater treatment process. Final design for the expansion and emerging contaminant treatment project is expected to be completed by the middle of 2024 with construction beginning at that time.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0087866 WWTP 0.0000 0.0000 0.6920 1.2320 Randleman Regional Reservoir Deep River (02-2)

Our current permit does not have a flow capacity limitation.

5. Planning

Projections
  2022 2030 2040 2050 2060 2070
Year-Round Population 0 0 0 0 0 0
Seasonal Population 0 0 0 0 0 0

Residential 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Commercial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.3420 1.5000 3.0000 4.0000 4.0000 4.0000
Unaccounted-for 0.3210 0.1500 0.0165 0.1815 0.2000 0.2200

PTRWA does not directly serve any customers, all water produced is sold directly to other public water systems who deliver water to the end users, the water systems PTRWA provides water to report population and water use projections in their water supply plans. Any expansions to the PTRWA water systems will be as a result of requests from the systems served for additional water up to their contractually allocated allocations. PTRWA anticipates future WTP expansions up to a 48 MGD finished water capacity, with the timing to be based upon the demands in the member's water systems. Above estimates for our system's process water and unaccounted for water take expansions into account. The next expansion is currently predicted to break ground in 2024 with completion slated for 2026, design for the expansion is currently underway.

Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
Piedmont Triad Regional Water Authority 30-76-010 Surface 0.0000 2026 Regular

PTRWA is in the process of planning for an expansion to the existing surface water treatment plant to and expected finished water capacity of 26.7 MGD. Engineering planning and preparation of a Basis of Design Report are to be completed by June of 2023 and final design for the expansion will begin immediately upon completion. It is expected that construction on the expansion will begin in 2024 and that it will be completed in 2026.

Demand v/s Percent of Supply
  2022 2030 2040 2050 2060 2070
Surface Water Supply 54.0000 54.0000 54.0000 54.0000 54.0000 54.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 54.0000 54.0000 54.0000 54.0000 54.0000 54.0000
Service Area Demand 0.6630 1.6500 3.0165 4.1815 4.2000 4.2200
Sales 11.1600 13.2690 13.2690 13.2690 13.2690 13.2690
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 11.8230 14.9190 16.2855 17.4505 17.4690 17.4890
Demand as Percent of Supply 22% 28% 30% 32% 32% 32%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is unavailable until we receive population data for 2022 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    As our only customers are solely other public water systems we do not plan to implement any plans to reduce future water supply needs, plans for demand management would need to be implemented by the systems that we provide water to.

Are there other demand management practices you will implement to reduce your future supply needs?   As our only customers are solely other public water systems we do not plan to implement any plans to reduce future water supply needs, plans for demand management would need to be implemented by the systems that we provide water to.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   None.

How does the water system intend to implement the demand management and supply planning components above?   N/A

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, PTRWA is comprised of 6 local governments and was formed to assist these localities in meeting their water supply needs for at least the next 50 years, therefore; by definition PTRWA is a regional water supply and was formed as a result of a regional planning effort.

What major water supply reports or studies were used for planning?  PTRWA conducted several exhaustive studies during the formation and creation of the dam and water treatment plant including a detailed comprehensive environmental impact statement required as part of the reservoir permitting process.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   N/A
